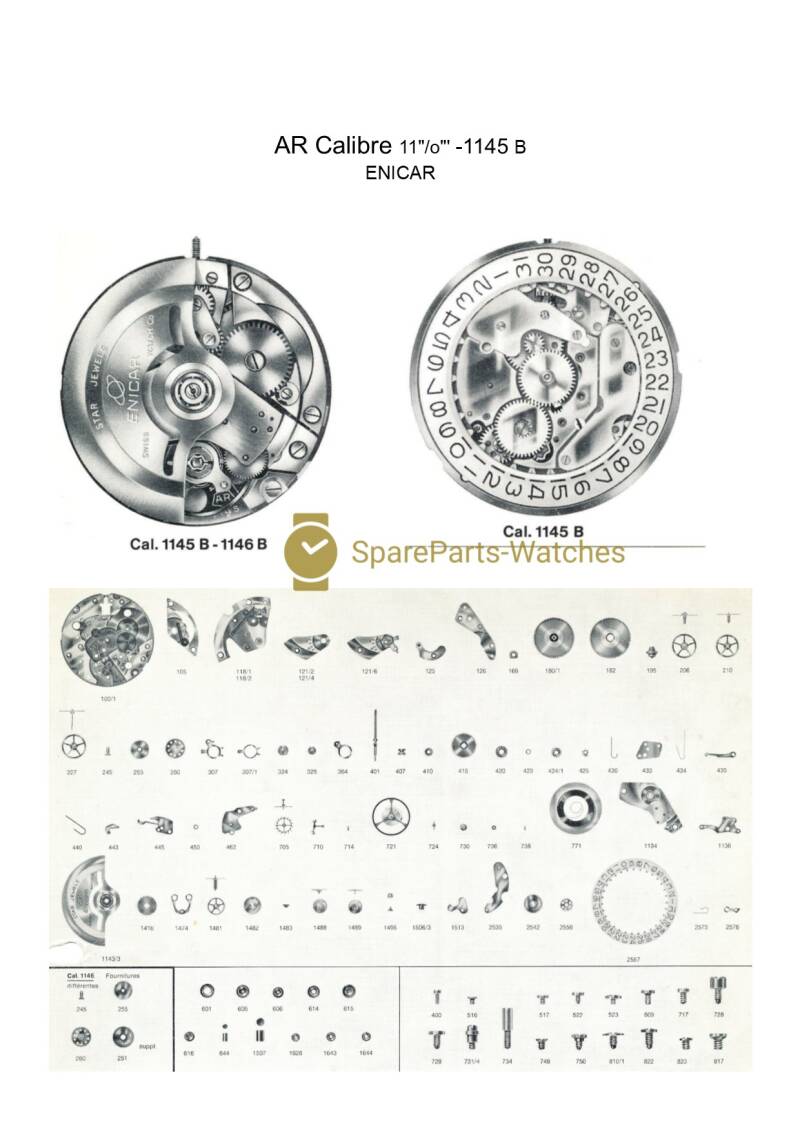

Enicar 1145 - AR 1145
Our selection of spare parts for this calibre: Enicar - AR1145
401 Stem, Enicar 1120, Enicar 1121, Enicar 1124, Enicar 1126, Enicar 1140, Enicar 1145, Enicar 1146, Enicar 1147, Enicar 160, Enicar 161, Enicar 165, Enicar 167C, Enicar 165D, Enicar 166D, Enicar 167D, Enicar 168D, Enicar 169D, Enicar 163, Enicar 165, Enicar 166, Enicar 167, AR 1120, AR 1140, AR 1145, AR 1146, AR 1147, AR 160, AR 165, AR 166, AR 167, AR 165D, AR 166D, AR 167D, AR 168D, AR 169D.
Remarks
The designations 1160…..1167 are scarcely met, these calibres were renamed to 160…167
721 Balance complete Enicar 1140, Enicar 1120, Enicar 1124, Enicar 1125, Enicar 1126, Enicar 1140, Enicar 1146, Enicar 1145B, Enicar 1146B, Enicar 1145C, Enicar 1146C, Enicar 1147C, Enicar 1145, Enicar 1147.
For this calibre we acknowledge the following parts:
182 Barrel (drum and cover)
195 Barrel arbor
200 Center wheel with cannon pinion
201 Center wheel without cannon pinion
203 Center wheel and pinion intermediaire
206 Center wheel drilled without pinion
210 Third wheel
220 Fourth wheel, second wheel
224 Fourth wheel long pivot
227 Sweep second wheel
240 Cannon pinion
245 Cannon pinion for sweep second wheel
250 Hour wheel
260 Minute wheel
275 Sweep second pinion
301 Regulator for flat hairspring
307 Regulator for breguet hairspring
401 Stem
404 Stem male/female
407 Clutch wheel
410 Winding pinion
415 Ratched wheel
420 Crown wheel
422 Crown wheel ring
423 Crown wheel core, upper
425 Click
430 Click spring
434 Clicking spring
435 Yoke
437 Rocking bar
440 Yoke spring
443 Setting lever
445 Setting lever spring
453 Intermediate setting wheel
462 Minute work cock
704 Escape wheel for lower endpiece
705 Escape wheel
710 Juwelled pallet fork
711 Pallet with lower endstone
721 Balance complete
723 Balance staff
728 Balance staff
730 Plateau
771 Main spring
790 Pin escape wheel
792 Balance staff
797 Pin pallet fork for roller
798 Finger
800 Pin pallet fork for finger
1143 Oscillating weight
1155 Lower cock for reduction gear
1196 Oscalating weihgt Axle
1423 Intermediate driving wheel for ratchet wheel
1428 Stop click
1446 Ratchet wheel lower
1453 Double function automatic spring
1471 Stop pinion
1478 Oscillating weight wheel
1480 Winding-up wheel
1482 Driving gear, mounted
1483 Ratchet Crown wheel driver
1485 Reverser, monted
1488 Pawl winding wheel, complete
1489 Pawl winding wheel, automatic
1491 Oscillating weight bolt
1496 Oscillator weight axe
1498 Bearing wheel for oscillater weight
1499 Reverser connecting wheel
1500 Wig-wag pinion
1509 Wig-wag pinion spring
1530 Coupling clutch, mount
1535 Reversing Wheel
1555 Winding wheel bolt
If the part you need it not available or listed, do not hesitate to contact us.
