Enicar 1160 - AR 1160

€50.00

Our selection of spare parts for this calibre: Enicar 1160 - AR1160

Remarks

The designations 1160…..1167 are scarcely met, these calibres were renamed to 160…167

401 Stem, Enicar 1120, Enicar 1140, Enicar 1145, Enicar 1146, Enicar 1147, Enicar 167C, Enicar 165D, Enicar 166D,  Enicar 167D, Enicar 168D, Enicar 169D, Enicar 163, Enicar 165, Enicar 166, Enicar 167, AR 1120, AR 1140, AR 1145, AR 1146, AR 1147, AR 160, AR 165, AR 166, AR 167, AR 165D, AR 166D, AR 167D, AR 168D, AR 169D.

Remarks

The designations 1160…..1167 are scarcely met, these calibres were renamed to 160…167

Our selection of spare parts for this calibre: Enicar 160D - AR160D

401 You can used the stem from 1140, this is for a srew stetting lever, but is working also by 1160

For this calibre we acknowledge the following parts:



182 Barrel (drum and cover)

195 Barrel arbor

200 Center wheel with cannon pinion

201 Center wheel without cannon pinion

203 Center wheel and pinion intermediaire

206 Center wheel drilled without pinion

210 Third wheel

220 Fourth wheel, second wheel

224 Fourth wheel long pivot

227 Sweep second wheel

240 Cannon pinion

245 Cannon pinion for sweep second wheel

250 Hour wheel

260 Minute wheel

275 Sweep second pinion

301 Regulator for flat hairspring

307 Regulator for breguet hairspring

401 Stem

404 Stem male/female

407 Clutch wheel

410 Winding pinion

415 Ratched wheel

420 Crown wheel

422 Crown wheel ring

423 Crown wheel core, upper

425 Click

430 Click spring

434 Clicking spring

435 Yoke

437 Rocking bar

440 Yoke spring

443 Setting lever

445 Setting lever spring

453 Intermediate setting wheel

462 Minute work cock

704 Escape wheel for lower endpiece

705 Escape wheel

710 Juwelled pallet fork

711 Pallet with lower endstone

721 Balance complete

723 Balance staff

728 Balance staff

730 Plateau

771 Mainspring

790 Pin escape wheel

792 Balance staff

797 Pin pallet fork for roller

798 Finger

800 Pin pallet fork for finger



If the part you need it not available or listed, do not hesitate to contact us.

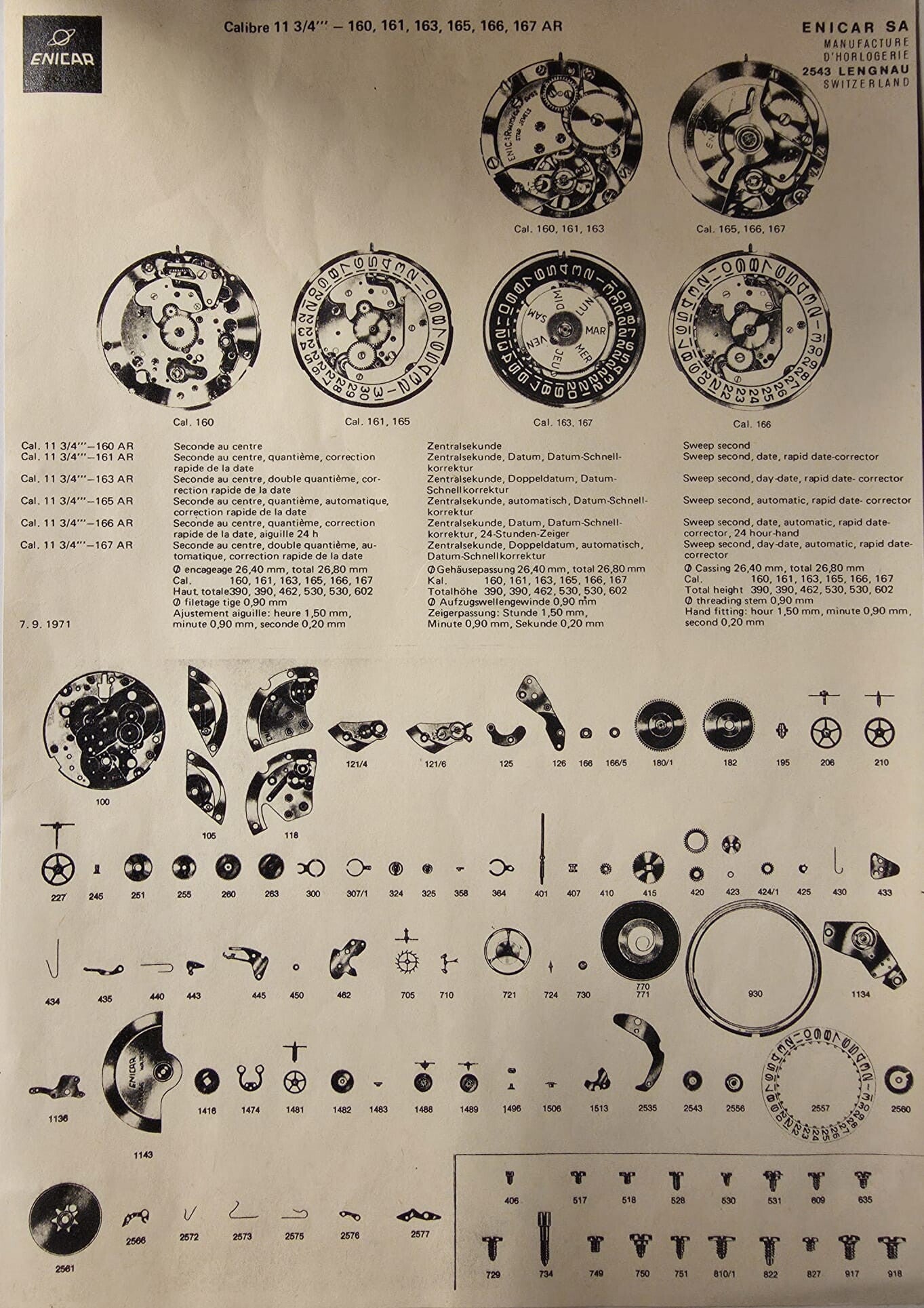

Below figure is an example for this calibre type:
