BULER 5500

€4.50

Our selection of spare parts for this calibre: BULER 5500



For this calibre we acknowledge the following parts:



203 Intermediate wheel

210 Third wheel

215 Intermediate second wheel

227 Second wheel

240 Cannon pinion

242 Cannon pinion with driver

250 Hour wheel

255 Hour wheel

260 Minute wheel

405 Stem

407 Sliding pinion

435 Yoke

443 Setting lever

445 Setting lever jumper

450 Setting Wheel

462 Minute train bridge

482 Setting lever recall spring

560 Stop lever and switch

2543 Intermediate date wheel

2556 Date indicator driving wheel

2557 Date indicator

2566 Date corrector

2570 Double corrector operation lever

2576 Date jumper

2595 Date jumper maintaining plate

4000 Electronic Module

4021 Stator

4060 Coil

4211 Rotor

4401 Bridle +

4402 Bridle -



If the part you need it not available or listed, do not hesitate to contact us.

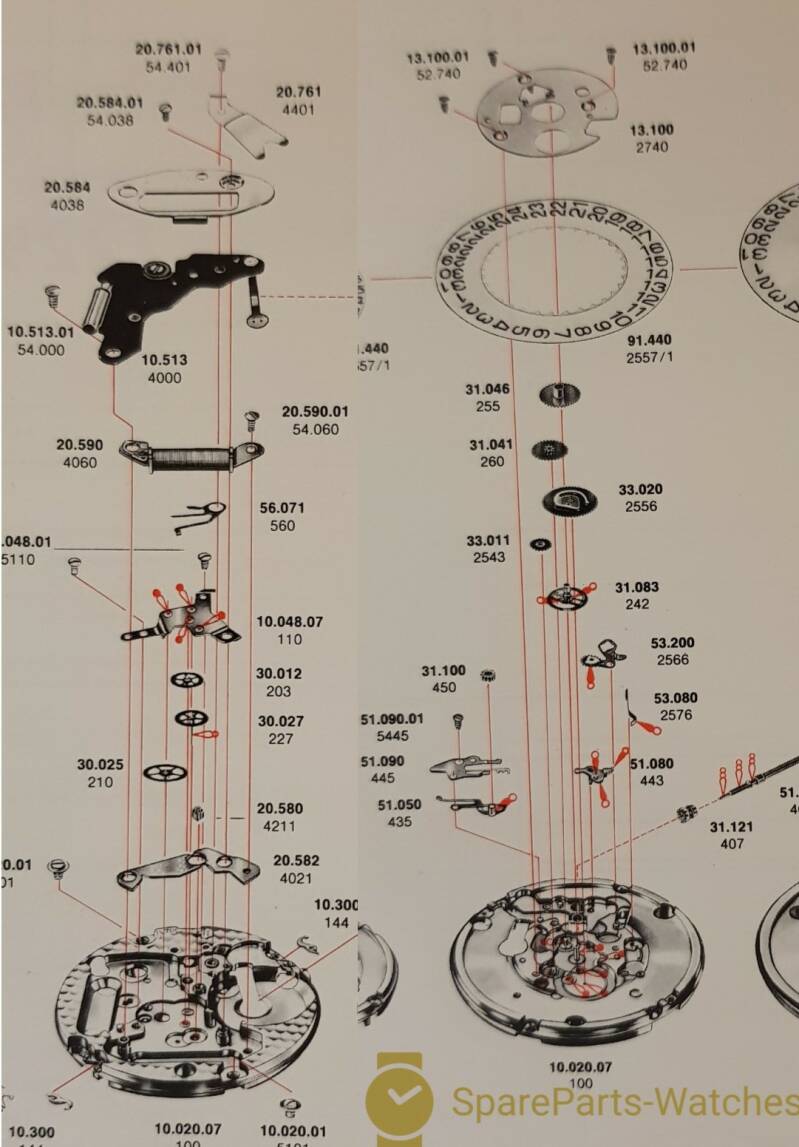

Below figure is an example for this calibre type:
